Sheet Metal Punching Services

At Edalica, punching is one of our profiling processes that has been made completely automated for efficiency using our robust Finn-Power technology to meet our customer’s needs. We attain the highest productivity for executing small or large jobs with a variety of metal material at high-speed and heavy-tonnage capability.

What is Punching?

Punching is a metal fabricating process that removes a fragment slug from the metal piece on the application of punch. Whenever the punch enters the punching dye, the process leaves a hole at the metal surface.

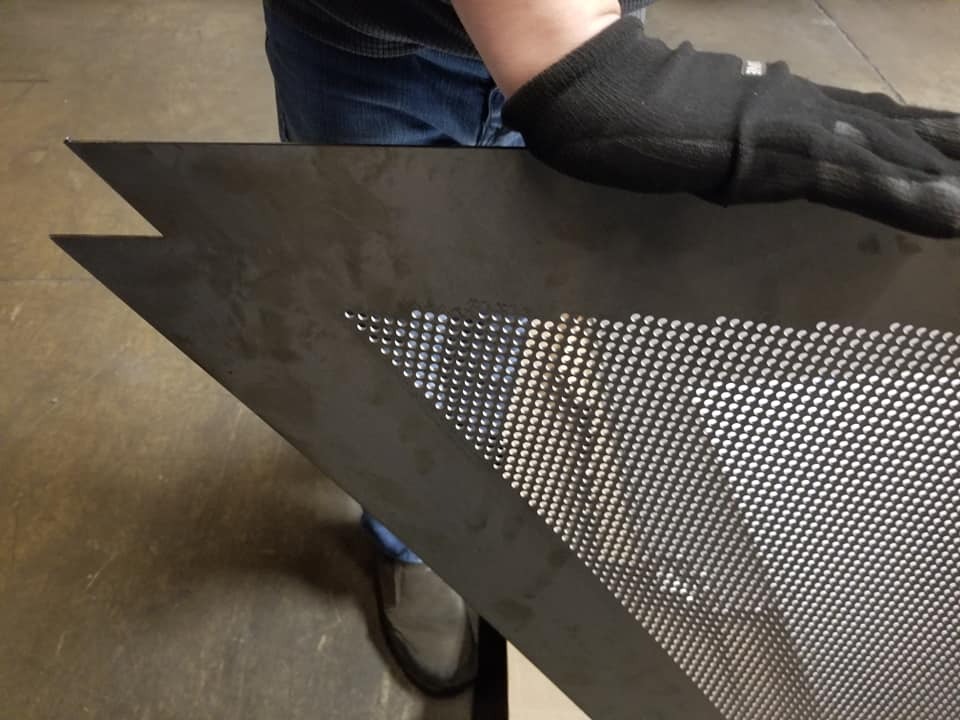

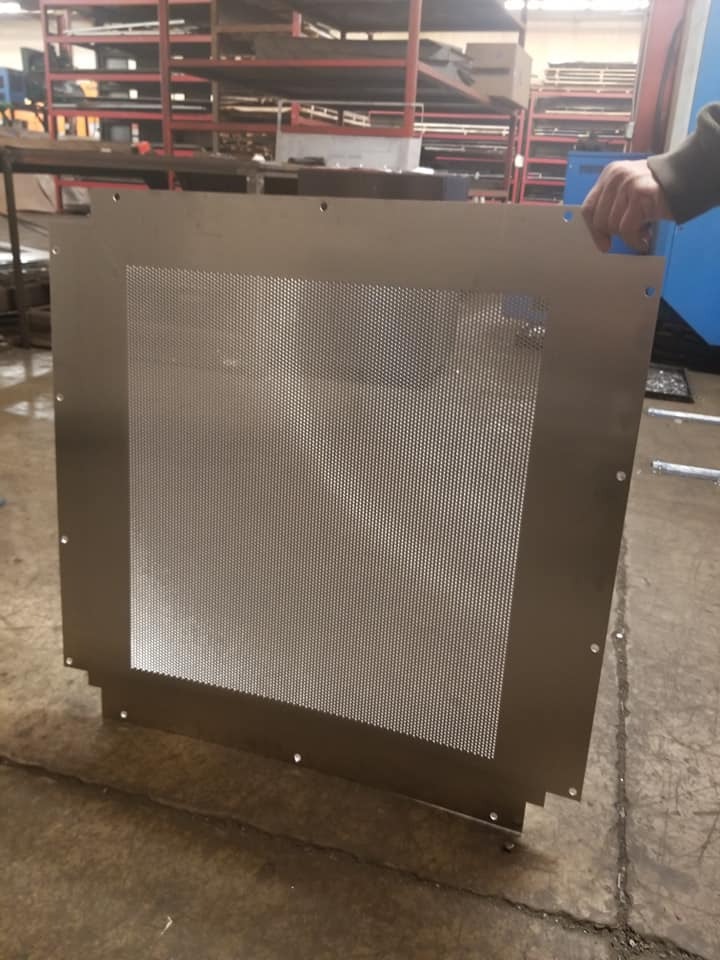

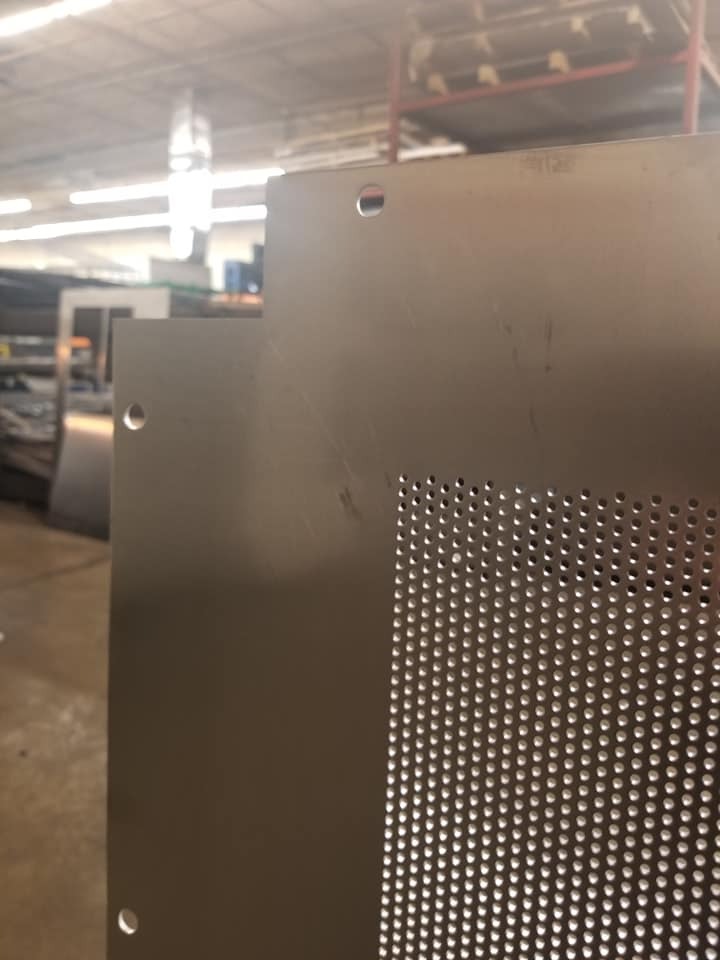

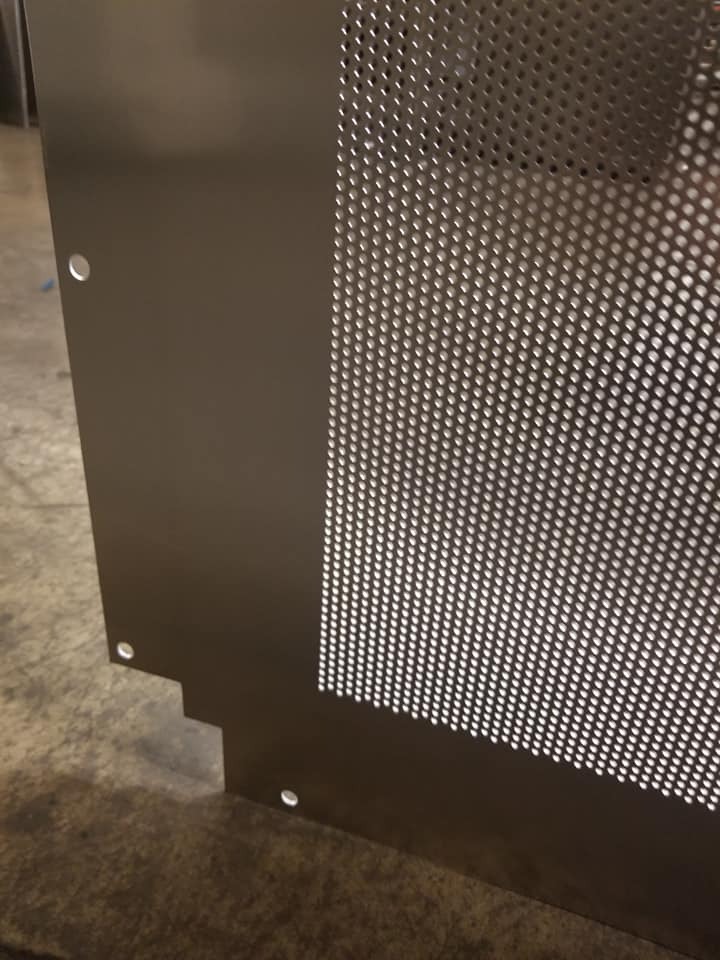

The punching process involves a hardened steel punch that forces itself through a metal sheet giving perforations. The shape and size of the perforations can be altered according to the specifications.

Benefits of Punching

Due to the contact less nature of the laser cutting process, there is no downtime and wear and tear of parts when the machines are turned off to replace blades. This reduces the operational cost significantly without compromising the performance.

Custom Finishing

Punching is a part of the metal fabrication process that allows you to create holes or perforations in metal sheets with a variety of shapes and sizes including rectangular, square, diamond, spherical. It is also used to fabricate metal louvers that are used to regulate airflow or light penetration.

Guaranteed Automation

The punching machines can handle up to 1200 hits per minute on the metal sheet and have an automated loading system that gives an effective and continuous operation.

Material Versatility

The process can punch metal of varied material including stainless steel and aluminum ranging from medium to large thicknesses. It can maintain the precision of punches over and over without any variation.

Cost-Effective

Punching is one of the most inexpensive methods for creating perforations in a metal work-piece in medium to high production volumes. Since the process is very fast, it saves up on time and human intervention to finish the required product.

The Edalica Process

At Edalica, we take all punching jobs to a next level by automating the entire process. Whether these jobs demand small volumes or large ones for punching, our hydraulic cylinder press delivers fine holes in a fast and inexpensive way.

Finn-Power Turret Punch Press Model: F5- SAM
Punching Force : 300 kN
Punch Stroke : Hydraulic
Number of Turret stations : 20 pcs
Tools : Thick Turret
Max punch Diameter : 89 mm

Max tool rotation : 58 r/min
Max. material thickness : 8 mm
Max sheet weight : 200 kg
Max sheet size : 2530mmX1270mm
X Traverse : 2584 mm
Y Traverse : 1317 mm

Technology We Use

Through the use of this turret punch press with heavy tonnage and high-speed capabilities, we deliver the final punched material with close tolerance requirements on a variety of sheet types.

Finn-Power Turret Punch Press Model F5- SAM

Specifications:

Max Tool Rotation: 58 r/min
Max. Material Thickness: 8 mm
Max Sheet Weight: 200 kg
Max Sheet Size : 2530mmX1270mm
X Traverse: 2584 mm
Y Traverse: 1317 mm

Industries Served

Partner with the Experts in Metal Punching

From stainless steel to copper of any thickness, our team is capable of handling custom metal punching requirements of our clients in Toronto and the GTA. We serve application-specific demands across industries with quicker turn-around and efficacy.

Request a Custom Quote

Get in touch with our representative to know more about our punching services
